PowerMax 2400 Pro

Revolutionize the Next Energy Era!

2,016Wh to 22,176Wh Mega Safe Sustainable Power
for Home Backup, Travel, and Beyond.

Why Choose OSCAL PowerMax 2400 Pro?

No.1

Budget-Savvy & Eco-Friendly 3-in-1 Balcony Solar System

No.2

World's First Portable Power Station with Powerful 25W+10W Dual Speakers

No.3

2,016Wh to 22,176Wh MegaCapacity with Innovative Cableless Stacking Design

No.4

Supports 99% of Home Devices & 1.2 Hours Ultra-Fast Charging & Smart APP Control

No.5

More Safety with LFP Battery & Ultra-bright LED Light

No.1

Budget-Savvy & Eco-Friendly 3-in-1 Balcony Solar System

Eco and Budget Win-Win

3-in-1 Balcony Solar System

Enjoy green energy anytime with the PowerMax 2400 Pro 3-in-1 Balcony Solar System! Lower your electricity costs, live more sustainably, and sell surplus power back to the grid when connected.

On Grid

Off Grid

On and Off grid

Solar + On-Grid Ready = Bigger Savings for You!

More Energy Savings

OSCAL
PowerMax 2400 Pro

1,095kWh/Year

28.8% ↑

Peers

850kWh/Year

Increased Cost Savings

OSCAL
PowerMax 2400 Pro

$490.6/Year

28.8% ↑

Peers

276.6/Year

More Sustainable

OSCAL
PowerMax 2400 Pro

547.5kg/Year

110%

Peers

260kg/Year

* Note: The data is calculated based on a standard of 3kWh/day and is for reference only.

Revolutionize Your Solar Strategy

Free Setup for Balcony Solar System with a Built-in 800W Microinverter

Power OSCAL PowerMax 2400 Pro with balcony solar panels and a built-in microinverter, creating a self-sustaining solar system. Save on electricity bills by using stored energy during peak times and make money by selling excess power back to the grid.

No.2

World's First Portable Power Station with
Powerful 25W+10W Dual Speakers

Let Every Beat Echo in Your Soul

Powerful Dual Speakers

Make every moment special with PowerMax 2400 Pro. With its 25W subwoofer & 10W tweeter, revel in deep bass and sharp highs, no matter where you are. And it's got your back in an emergency.

10W

Tweeter

25W

Subwoofer

130dB

Supreme Thundering Sound

100-Meter

Max Sound Distance

Exciting Outdoor & Indoor Activities

Indulge in a Theater-like
Outdoor Movie Night

Breathtaking Audio that
Enhances Every Scene

Celebrate with Songs and
Dance by the Sea

Groove Under the Night Sky,
with Tunes Leading the Way

Bring the Cinema Home with
Room-Filling Sound

Don't Let a Blackout Ruin Your Night

Exciting Outdoor & Indoor Activities

SOS Self-Rescue in Remote Areas

Relentless Calls for Help to Buy Rescue Time

Drive Away Threatening Wildlife

Secure Personal Safety Efficiently

No.3

2,016Wh to 22,176Wh Mega Capacity with
Innovative Cableless Stacking Design

2,016Wh to 22,176Wh Mega Capacity

Up to 2 Weeks of Power Supply

Innovative Cableless Stacking Connection

Simpler Installation↑ ，Neater↑

Up-and-Down Machine Separation Achieved

Down to 13.9 lbs Each, Easier to Carry ↑

Endless Power, Enjoy Every Blissful Moment

2,016Wh to 22,176Wh Mega Capacity

Want more reliable power for blackouts, saving on energy, or off-grid living? PowerMax 2400 Pro, with its powerful 2,016Wh battery, can expand up to 22,176Wh with 10*BP2400 Pro additional batteries. Enjoy reliable, long-lasting energy for all your devices.

2,016Wh 8,064Wh 22,176Wh

PowerMax 2400 Pro

About 1-2 Days

PowerMax 2400 Pro+
3*BP2400 Pro

Up to 1 Week

PowerMax 2400 Pro+
10*BP2400 Pro

Up to 2 Weeks

Clutter-Free Power Stacking
from Base to Peak!

Innovative Cableless Stacking Connection

Say goodbye to tangled cables and hello to simplicity with OSCAL PowerMax 2400 Pro and BP2400 Pro. The seamless stacking design ensures space efficiency, reliability, and a clean setup for your power needs.

Cableless Stacking Connection

Simpler Installation↑
Neater↑

Cable Stacking Connection

More complex Installation↑
Messier↑

Pack More Power, Feel Less Weight

Up-and-Down Machine Separation Achieved with Cableless Stacking

No more power storage hassles! With ergonomic handles and portable cableless stacking modular design, PowerMax 2400 Pro is easy to carry to your car, lawn, or any room in your home.

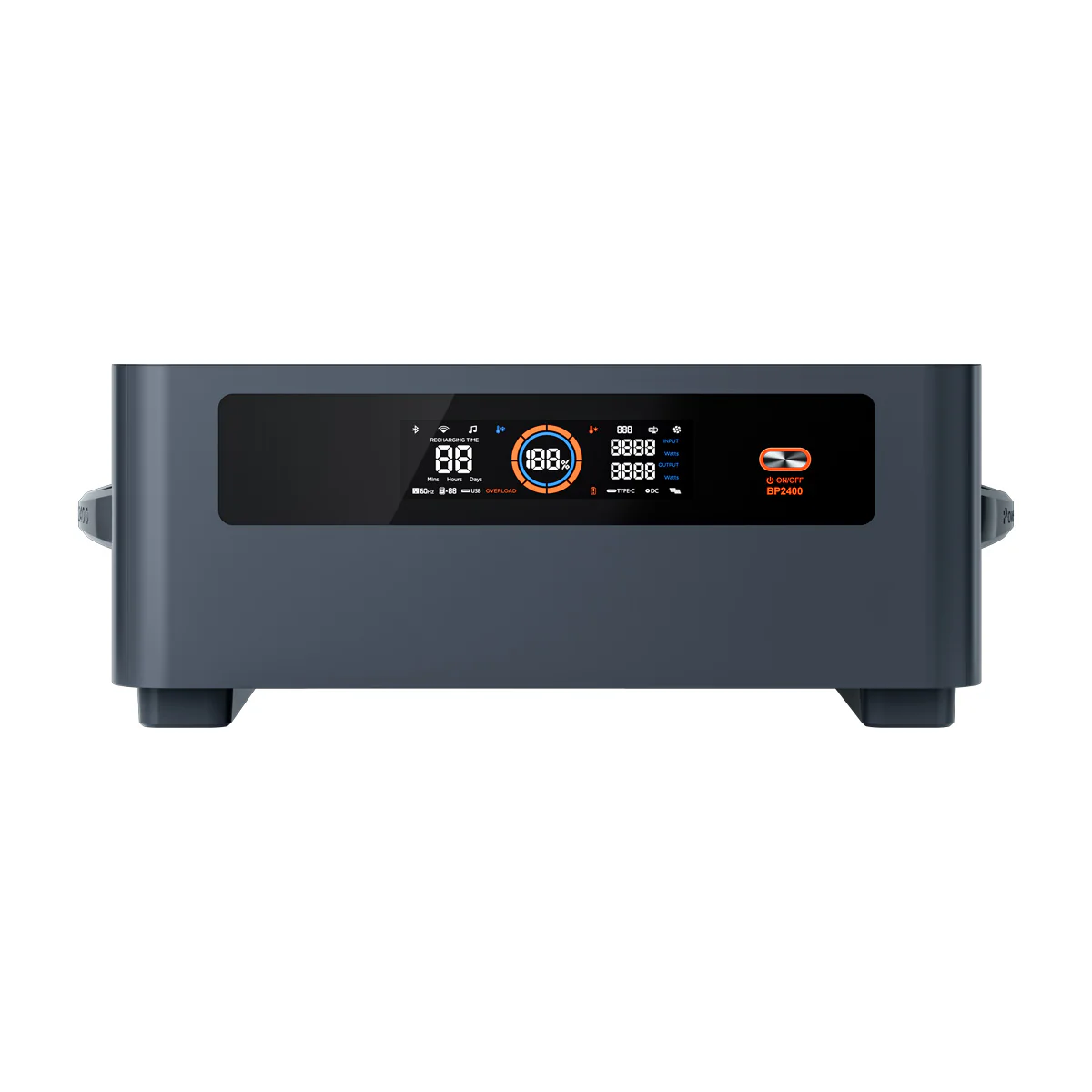

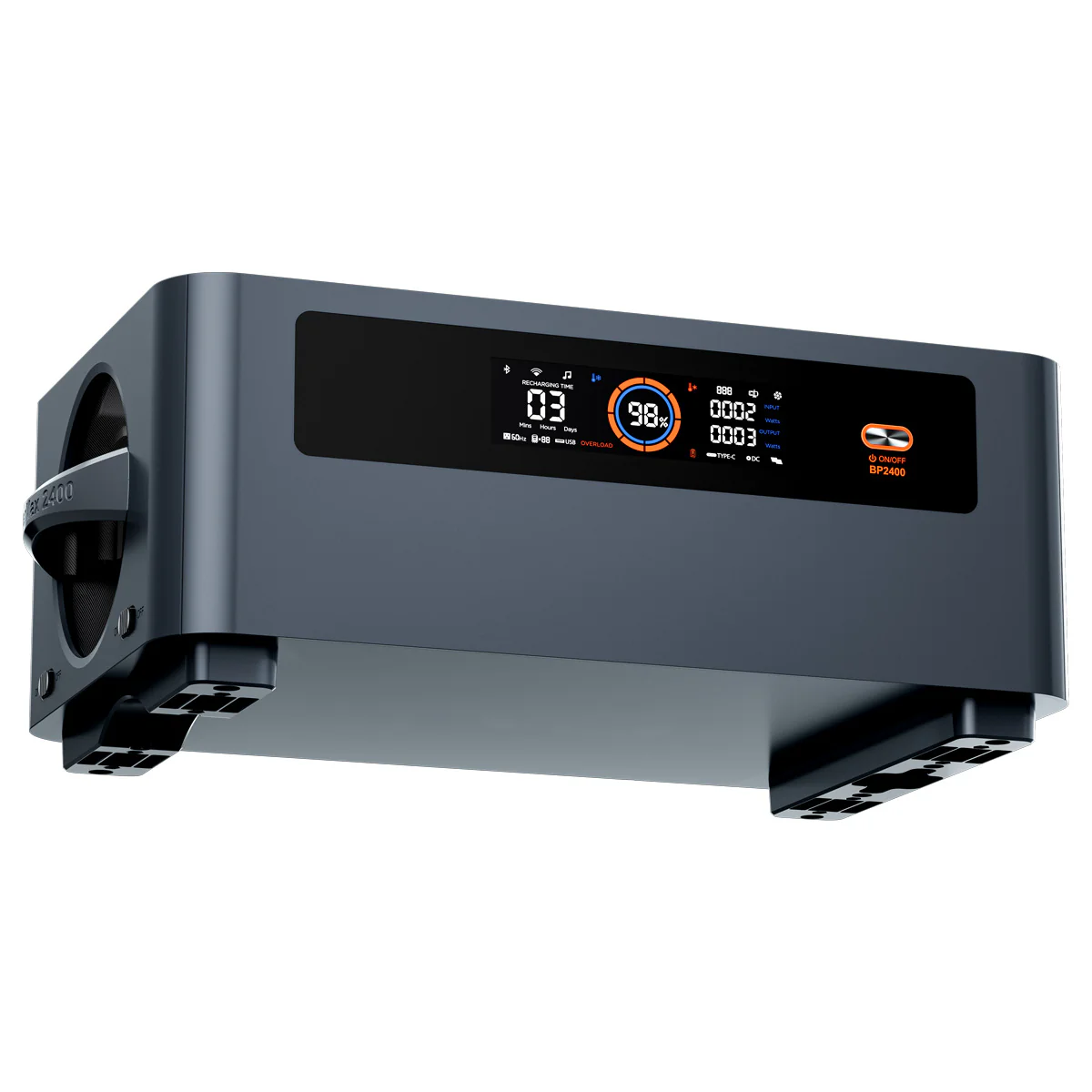

Detachable Modular Innovation

6.3 kg(13.9 lbs)

20.5 kg(45.5 lbs)

19.9 kg(43.8 lbs)

No.4

Supports 99% of Home Devices & 1.2 Hours
Ultra-Fast Charging & Smart APP Control

The Power to Do It All!

Powerful 2400W Output Supports 99% of Home Devices

Stay powered and at ease with PowerMax 2400 Pro. Its powerful 2400W output can handle 99% of your home devices, making it ideal for camping, emergency blackouts, and outdoor projects. No matter where you are, it's got you covered.

Home-Grade Power, Anytime, Anywhere

Pure Sine Wave Output

With pure sine wave AC output, PowerMax 2400 Pro ensures your devices run smoothly without any voltage hiccups. Plus, it is compatible with all household electronics, offering stability and dependability that rival your home's AC outlets.

Power Up, Perform Better, Enjoy More

PowerMax 2400 Pro
High-Power Performance

Low-Power Peers

Charging 16 Devices at Once, Easy as Pie!

Power Everything, From Home to Adventure

16 Thoughtfully Organized Outputs

With 16 thoughtfully organized outputs—wireless charging, a car charger, DC outlets, AC sockets, USB-A, and USB-C—PowerMax 2400 Pro is designed to meet all your needs, from home blackouts to off-grid living and outdoor adventures, ensuring you stay comfortable and at ease.

Notes:
1.The DC5521 port is a 5.5x2.1mm round connector.
2.Using the DC5521 port, car cigarette lighter port, and Anderson connector together allows for a maximum power of 300W.
3.Each AC port supports up to 2400W, with a combined limit of 2400W across all four.
4.The total maximum output for all 16 outputs is 2400W.

On-the-Go Energy Revolution

Unique DC 12V/24V Output Ports

Ready for the road with PowerMax 2400 Pro – featuring unique DC 12V/24V output ports for RVs, trucks, and more, ensuring reliable power for all your on-the-go adventures.

Juicing up
Trucks

Charging
RVs

Powering up
the Car Fridge

Charging the
Vacuum Cleaner

No More Battery Anxiety

Effortless Direct Emergency Power for Your EV

Planning a long drive in your EV and fearing you might run out of battery before the next charging stop? Relax! With its impressive 2400W AC port, you can give your car a quick emergency charge, ensuring a smooth and worry-free journey.

2,016Wh

PowerMax 2400 Pro

≈6 Miles

8,064Wh

PowerMax 2400 Pro+3*BP2400 Pro

≈24 Miles

22,176Wh

PowerMax 2400 Pro+10*BP2400 Pro

≈66 Miles

Power
RV

Power
Electric Bike

Power
Electric Scooter

Power
Yacht/Boat

Boost Your Charge in a Blink

Dual 100W USB-C Fast Charging

Step up to the USB-C era! With PowerMax 2400 Pro, dual 100W USB-C ports power up your phone and laptop fast, helping you ditch the extra chargers and live battery worry-free!

Wireless Charging,
Always Fully Powered

15W+15W Wireless Charging Pads

Pop your phone, earphones, or any device onto OSCAL PowerMax 2400 Pro wireless charging pad for a hassle-free power boost. Stay charged and ready to roll, no matter how hectic life gets.

2016Wh Mega Capacity,
2400W Super Power, Ready for All Scenarios

RVing & Outdoor Fun

Home Power Backup

Professional Power

Filmmaking and Photography

Ultra-Fast Charging: 1500W Max Power

0-80% Charge in just 1.2 Hours

Never miss a moment with PowerMax 2400 Pro's lightning-fast 1500W charging. Charge up to 80% in 1.2 hours and be adventure-ready with a full charge in just 1.6 hours.

On the Go? Charge in a Snap with Solar

1200W + 300W Hyper-Fast Two-Way Solar Charging

Stay energized and eco-conscious on your adventures with PowerMax 2400 Pro. Fully charge it in a lightning-fast 1.6 hours using up to 1500W of solar power. Ideal for outdoor fun, travel, or emergencies.

Go Greener and Save More with PowerMax 2400 Pro!

Enjoy stable, reliable power with clean energy from solar and wind. Save money and reduce carbon emissions by up to 2,415 kg over its lifetime. Together, we can create a greener future.

Charge. Feed. Save

Bidirectional Power Flow

Power Beyond Limits with PowerMax 2400 Pro. Harness bidirectional power flow technology to charge devices or feed power back to the grid. Lower your expenses, minimize waste, and help build a sustainable world together!

* All-in-One Port for Charging and Power Feeding.

8 Ways to Charge: Stay Powered Anytime, Anywhere!

AC Fast Charging

1400W(Max)

1.7 Hours

Full Charge

Two-Way
Solar Charging

1500W(Max)

1.6 Hours

Full Charge

AC + Solar Charging

1500W(Max)

1.6 Hours

Full Charge

Car Charging

240W(Max)

10 Hours

Full Charge

EV Charging Station

1500W(Max)

1.6 Hours

Full Charge

Gas Generator
Charging

1500W(Max)

1.6 Hours

Full Charge

Wind/Water
Turbine Charging

1500W(Max)

1.6 Hours

Full Charge

Lead-acid
Battery Charging

240W(Max)

10 Hours

Full Charge

Mighty Power at Your Command

Smart APP via Wireless BT or WiFi

Access the PowerMax 2400 Pro smart app via wireless BT or WiFi, allowing you to effortlessly control power output and check charging times from your phone, making everything more convenient and hassle-free.

PowerMax 2400 Pro

Wireless BT & WiFi

Unlimited Range Control

Peers

Only Wireless BT

Limited to 15-Meter Control

Note: Once you connect your phone to PowerMax 2400, you can control it without distance restrictions as long as WiFi is available.

No.5

More Safety with LFP Battery & Ultra-bright LED Light

Zoom in on Every Detail. Shield Up.
Ensure Ultimate Safety

Reliable Energy for Decades

Top-tier UL-certified EV-grade LFP Battery

Equipped with UL-certified, top-tier EV-grade LFP (LiFePO4) battery, PowerMax 2400 Pro boasts 3,500 uses before capacity drops to 80%, ensuring you a solid 10-12 years of daily power supply.

UL Certified For Superior Safety

Battery Capacity ≥80%

PowerMax 2400 Pro

3500+

Cycles

7X Longer Lifespan

Standard Portable Power Station

500+

Cycles

Note: Assuming one full charge/discharge cycle every 1-2 days, after 3500 cycles (about 10-12 years), the battery will still retain over 80% of its original capacity.

Ultimate Battery Safety Made Simple

Smart Battery Management System

At the heart of safe battery usage, OSCAL PowerMax 2400 Pro's Battery Management System provides smart, real-time oversight of voltage, current, and temperature, offering you unmatched power security.

Eightfold Safety Protection

Reliable Power for Your Wildest Adventures

Stable Operation from -4℉ to 113℉

From the icy Arctic to the blazing desert, PowerMax 2400 Pro guarantees steady power, keeping your devices running reliably.

Instant Switch, No Interruptions

Ultra-fast UPS Auto-switch <0.01s

When connected to household power, PowerMax 2400 Pro defaults to UPS mode. If a power failure occurs, it kicks in within an ultra-fast 0.01 seconds, providing seamless power to your devices for uninterrupted operation.

PowerMax 2400 Pro

UPS<0.01s

2X Faster ↑

Peers

UPS<0.02s

Before the Blackout

After the Blackout

Pro-grade Cooling for Peak Efficiency

Efficient Cooling System

With four intelligent fans, PowerMax 2400 Pro ensures premium cooling. When your load hits over 480W, the cooling system efficiently kicks in, making it your go-to for camping, emergencies, or lengthy outdoor work.

Seven Temperature Sensors

Temperature Monitoring
at 30ms/time

4*72000mm³

Ultra-large Smart Temperature-
activated Fans

Power On the Go, Silence in Tow

Power and peace coexist with the PowerMax 2400 Pro. It operates quietly during light tasks, ensuring your environment stays calm. Even at peak performance, noise remains under 58dB, so you can stay comfortable and focused.

≤480W Load
480-1200W Load
1200W-2400W Load

0dB(Utter Silence)
30-45dB(Leaf Rustling)
46-58dB(Rain Whisper)

Light Your Way, Secure Your Stay

Ultra-bright LED Light

Whether you're facing an emergency, exploring the outdoors, or camping, PowerMax 2400 Pro's 5W ultra-bright LED, five lighting modes, and customizable flash signals have got you covered, keeping you safe and connected.

Fire-Rated Protection for
Every Outdoor Adventure

Top-Level UL94V-0 Fire Safety Standard

With its UL94V-0 fire safety rating, the PowerMax 2400 Pro offers superior protection and durability in tough environments. From outdoor barbecues to camping trips, it keeps you safe and secure.

30CM Vertically
Drop-Proof Design

Even when used outdoors, PowerMax 2400 Pro can endure vertical falls from 30-cm onto hard surfaces or grass without sustaining damage.

Effortless Power Insights, Even Under the Sun

Ultra-large Smart LCD Display

Enjoy clear power status under the sun with PowerMax 2400 Pro's 1000-nit screen. Its large smart LCD display gives you all the power information you need for efficient real-time monitoring and management, whether at home, outside, or in a crisis.

PowerMax 2400 Pro

TI Chipset

10% Quicker Response ↑

Peers

Etron Chipset

Wireless BT connection

WiFi connection

Music mode

Low temperature
warning

Battery level percentage

High temperature
warning

Error codes

Charging status

Fan status

Input power

Output power

Solar panel charging

DC output

Type-C output

Battery pack fault
warning

Output overload
warning

USB-A output

Number of charging
pack accesses

AC Output

Remaining charge/
discharge time

Spread Out 235 x 53.6 cm

Folded Up 61.8 x 53.6 cm

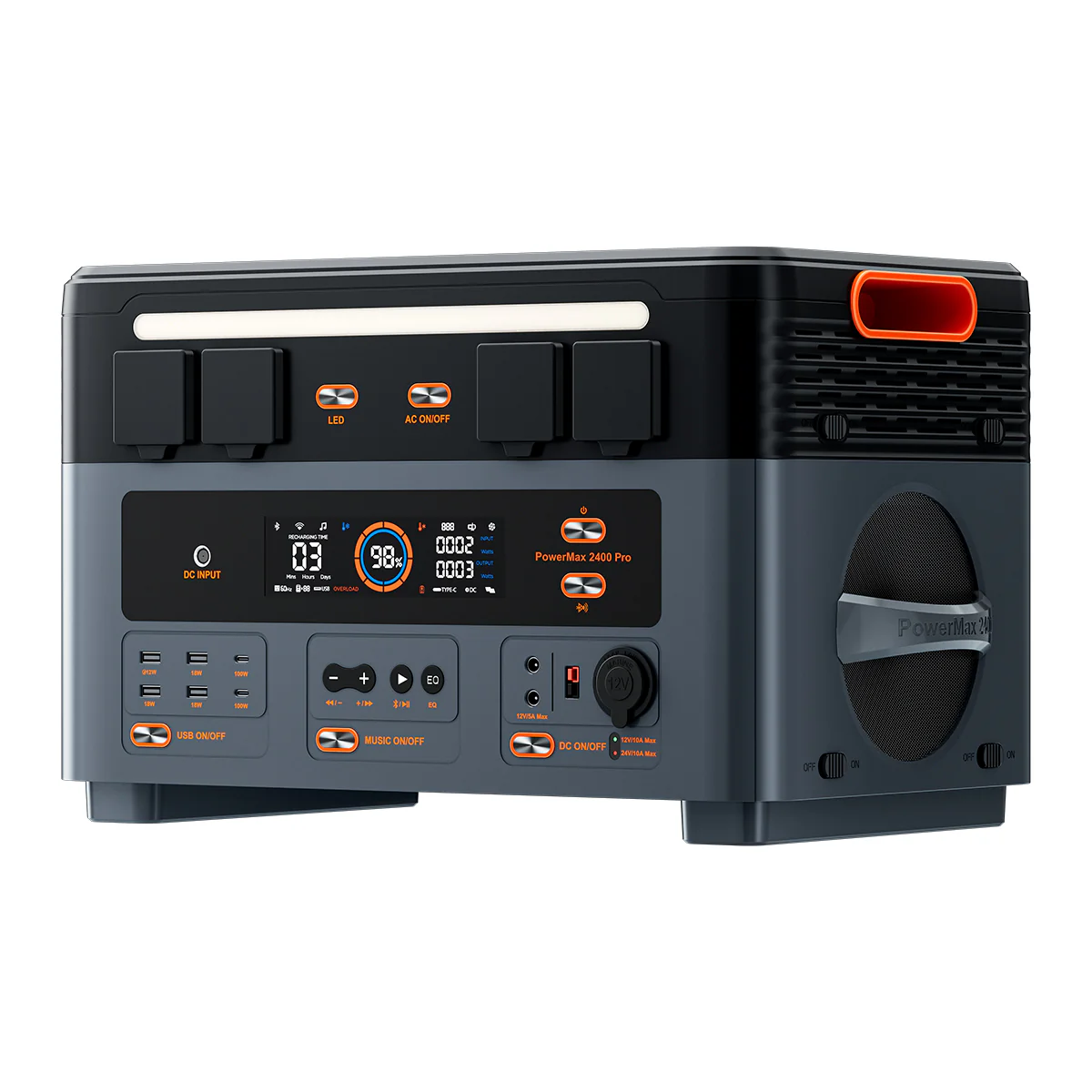

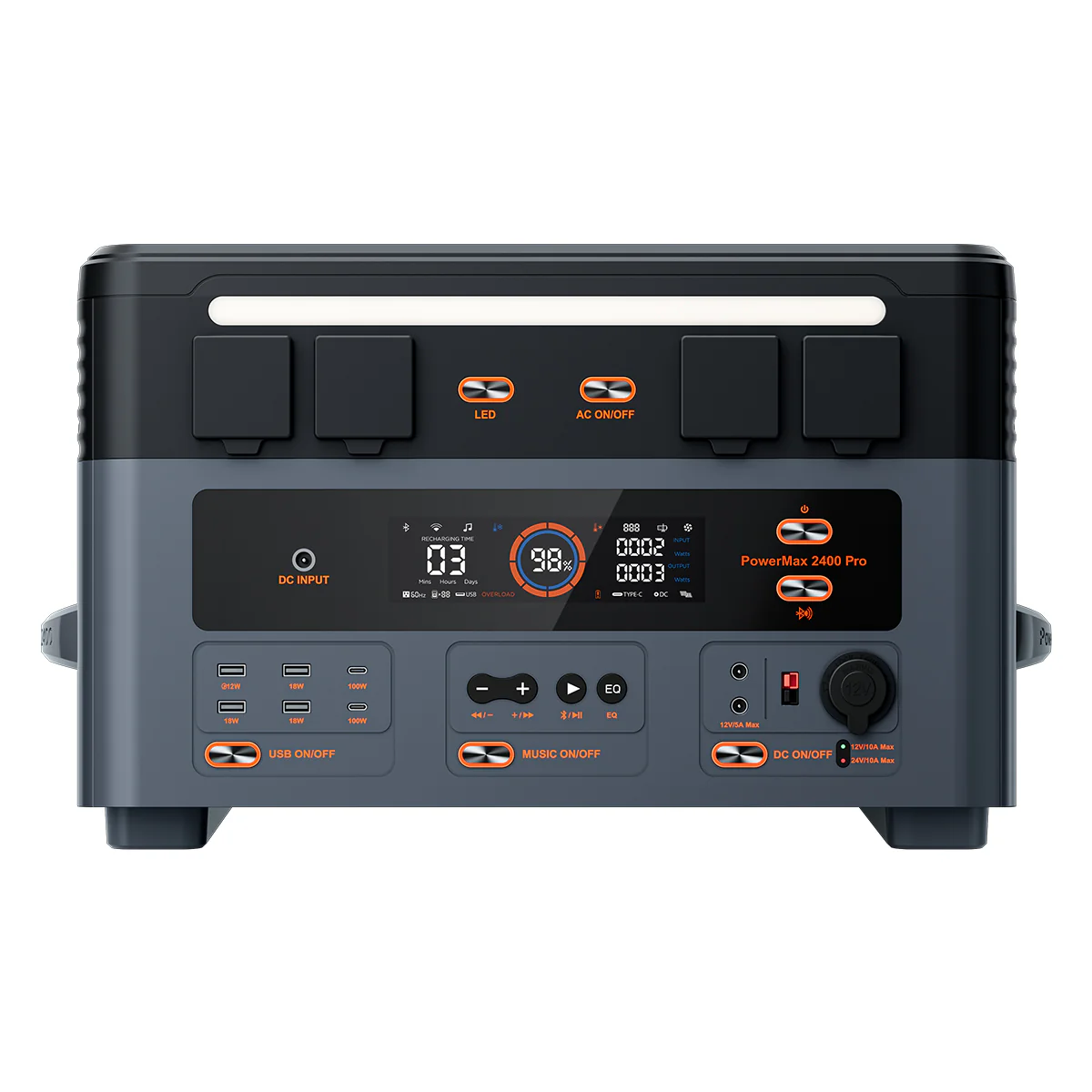

OSCAL PowerMax 2400 Pro

Weight: Approx. 24.45Kg/53.8lbs

LED light

LED light switch

DC7909 input port

USB-C output port*2

USB-A output port*4

USB output switch

Wireless BT speaker
switch

Volume +-/song
switch button

Music pause/play/
Wireless BT reset button

AC output switch

AC output socket*4

LCD Display

Main control switch

APP Wireless BT/WiFi
connection switch

DC5521 output port*2

Cigarette lighter
output port

Anderson output port

DC output voltage
indicator

DC output switch

EQ switch button

Solar/car charger
input port

AC input port

Over-current protector

Wireless link connector
port

Wireless charger*2

PowerMax 2400 Pro Specs:

Battery Info	Capacity	2,016Wh
	Scalability	2,016Wh to 22,176Wh PowerMax 2400 Pro + Up to 10*BP2400 Pro
	Type	LiFePO₄(Lithium Iron Phosphate)
	Life Cycles	3,500+ Cycles to 80% Original Capacity
	Shelf-life	Recharge to 80% Every 3-6 Months
	Management System	BMS
Output	Power	2400W, Surge Power: 4800W
	Inverter Type	Pure Sine Wave
	AC Outlets	4x 2400W Max
	USB-A Ports	3x 18W, 1x 12W
	USB-C Ports	2x 100W Max
	DC5521 Ports	2x 60W
	Car Cigarette Lighter Port	1x 240W Max
	Anderson Connector	1x 240W Max
	Wireless Charging Pads	2x 15W
Input	AC Fast Charging	1.7 Hours(Full Charge) 1,400W(Max) Pair with PM200 for 1,500W Max.
	Solar Charging	Two-Way 1.6 Hours(Full Charge) /1200W+300W(Max)
	12/24V Car Outlet(120W/240W)	24V: 10 Hours(Full Charge) 12V: 20 Hours(Full Charge)
General	Pass-through Charging	Yes
	UPS Switching Time	0.01s
	Dimensions (L x W x H)	47x29x32.6cm/18.5x11.4x12.8in
	Weight	Approx. 26.8Kg/59.1lbs
	Operating Temperature	-4℉ to 113℉ (-20℃-45℃)
	Storage Temperature	-14-113℃ (-10℃-45℃)
	Warranty	5 Years
	Certifications	Europe: CE/LVD(EN62368-1) CE/EMC(EN55032/35) RED(ETSI EN 303 417; ETSI EN 301 489-1; ETSIEN301 489-3; EN 62479) ROHS (EU) Japan:PSE/METI America: FCC ID DOE CEC FCC (Part 15C) UL

PM200 Specs

Panel Info	Power	200W
	Cell Lamination	ETFE (Ethylene Tetrafluoroethylene)
	Cell Type	Monocrystalline Silicon
	Cell Efficiency	≥21.7%
	MPPT Efficiency	Up to 95%
	Open Circuit Voltage	25.2V(Not less than 23.94V)
	Short Circuit Current	11.42A(Not less than 10.85A)
General	Operating Temperature	14℉-149℉ (-10℃-65℃)
	Weight	7KG/15.43 lbs
	Dimension (Unfolded)	53.6*235cm/21.1x92.5in
	Dimension (Folded)	Dimension (Folded)
	Warranty	2 Years

Related Product:
#portable power station for camping UK, #best portable power station for camping in Australia, #portable power station for refrigerator, #portable power station for home

EU Warehouse

Oscal PowerMax 2400 Pro Cableless Stacking Detachable Modular Portable Power Station

Extra Battery BP2400 For Oscal PowerMax 2400
